Storage & Service Tanks
Holding chocolate is easy. Holding it at temperature, everywhere in the tank, is not.
Specifications
| Model | Capacity | Note |
|---|---|---|
| Model - 1000 | 1000 L | — |
| Model - 2000 | 2000 L | — |
| Model - 5000 | 5000 L | — |
Between refining, tempering, and depositing, chocolate spends hours in tanks. Any cold spot in that time starts unwanted crystallisation; any hot spot risks the product. The tank is the least exciting equipment in the plant right up until it costs you a batch.

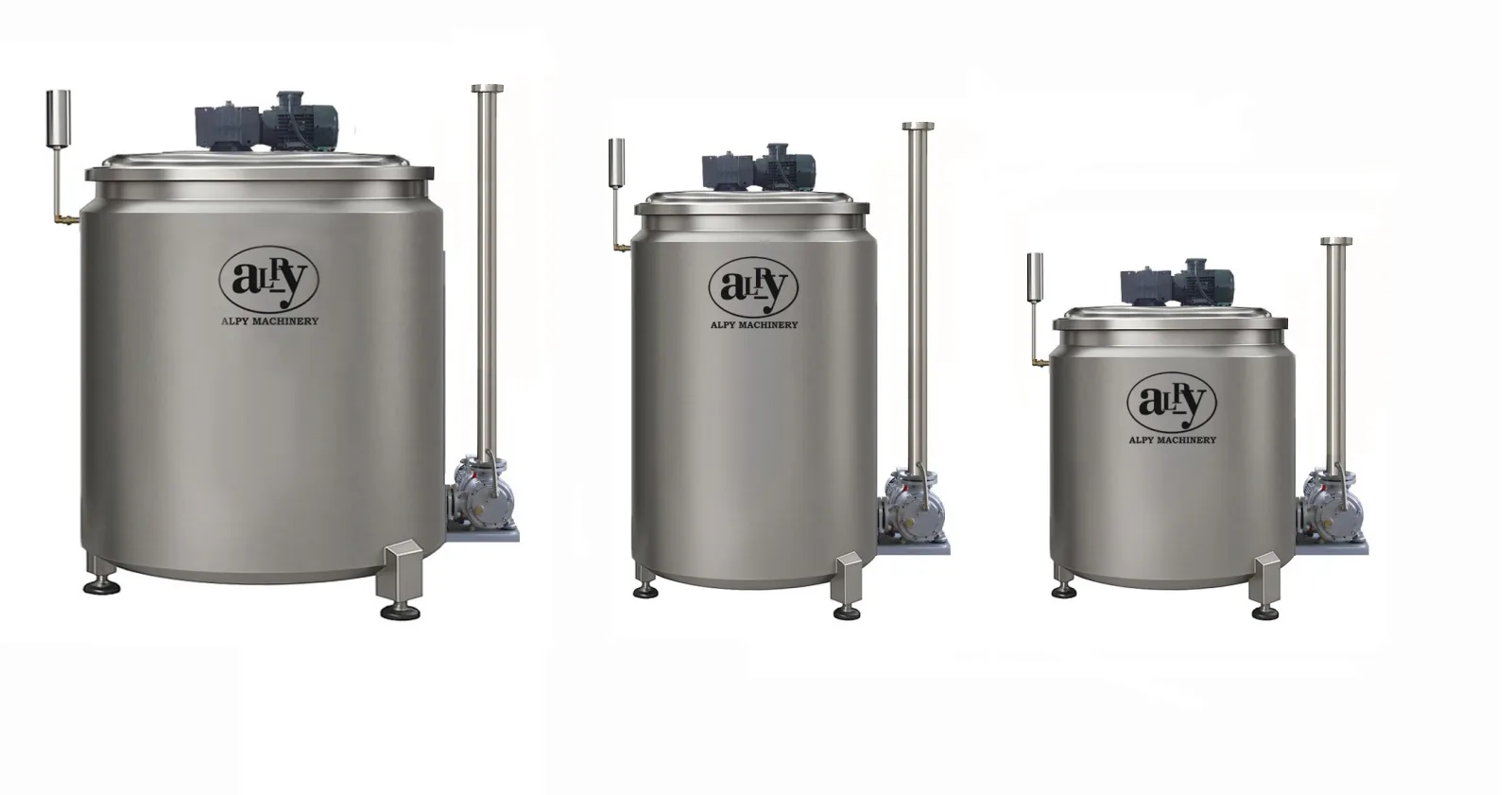

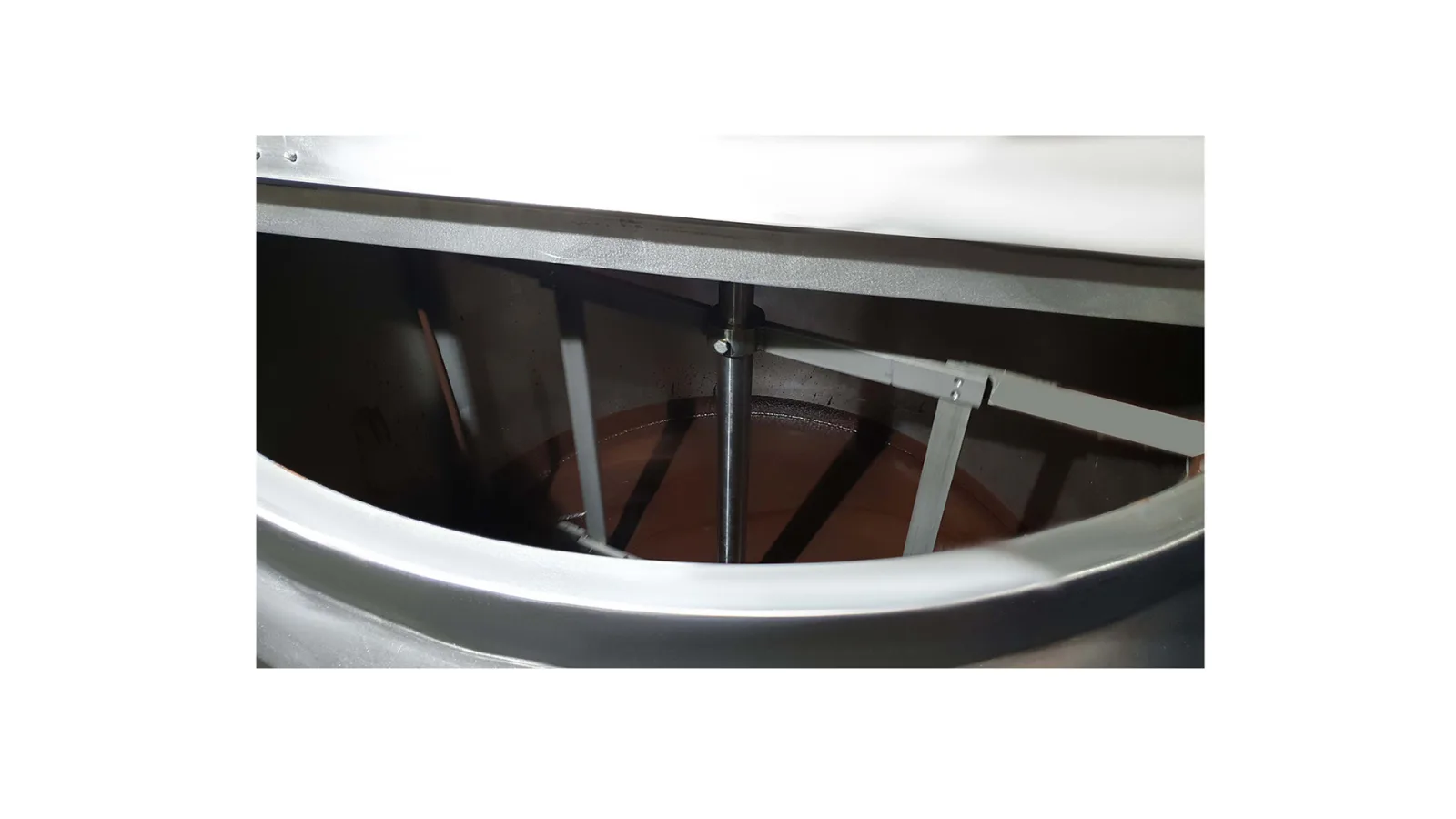

Alpy Storage and Service Tanks are double-jacketed and electrically heated, holding chocolate, compound, and cream products at uniform temperature throughout the vessel — no cold corners near the wall, no degradation near the elements. Hygienic, food-grade stainless steel construction throughout, in capacities from 1,000 to 5,000 litres to match any stage of your line.
Worthwhile options
- Vibrating sieve — screens out unwanted particles before product moves downstream, protecting your depositors and your finished product
- Fan group — draws off volatile compounds and excess moisture during holding, a measurable improvement in flavour and processing behaviour for sensitive recipes
Specifications
| Capacity range | Heating | Construction |
|---|---|---|
| 1,000–5,000 litres | Electric, double-jacketed | Food-grade stainless steel |
Planning tankage
How much storage you need depends on the rhythm of your line: a continuous refining system like the Chocoline needs different buffering than a batch operation feeding a moulding line in campaigns. Send us your line layout, or have us draw one, and tank sizing comes out of the same exercise.
