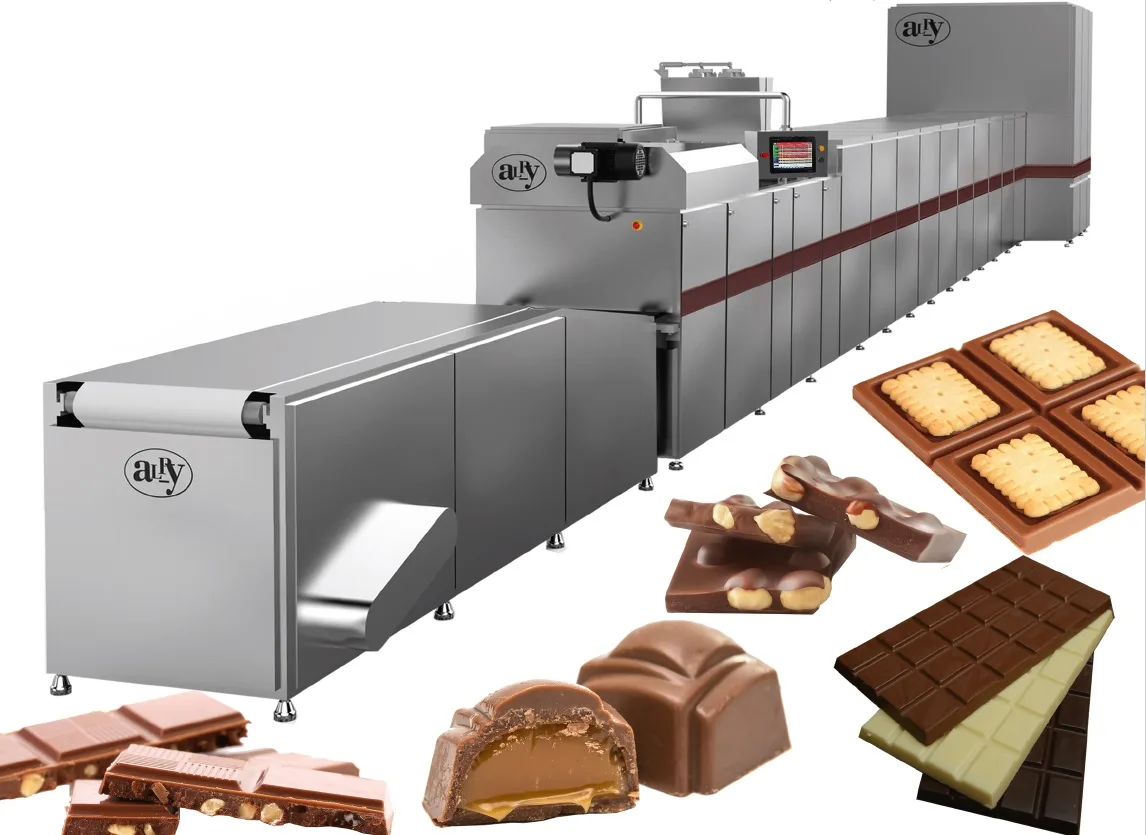

PIN-DRIVE™ Moulding Line
The dedicated moulding line: fewer parts, lower investment, the same depositing accuracy.
Specifications
| Model | Capacity | Note |
|---|---|---|
| PIN-DRIVE | 15–18 moulds/min | One-shot; 6 servo motors |
If your moulding line will run one product family, shift after shift, you don’t need modularity — you need a line with as little to go wrong as possible and a price that reflects what you’re not paying for.

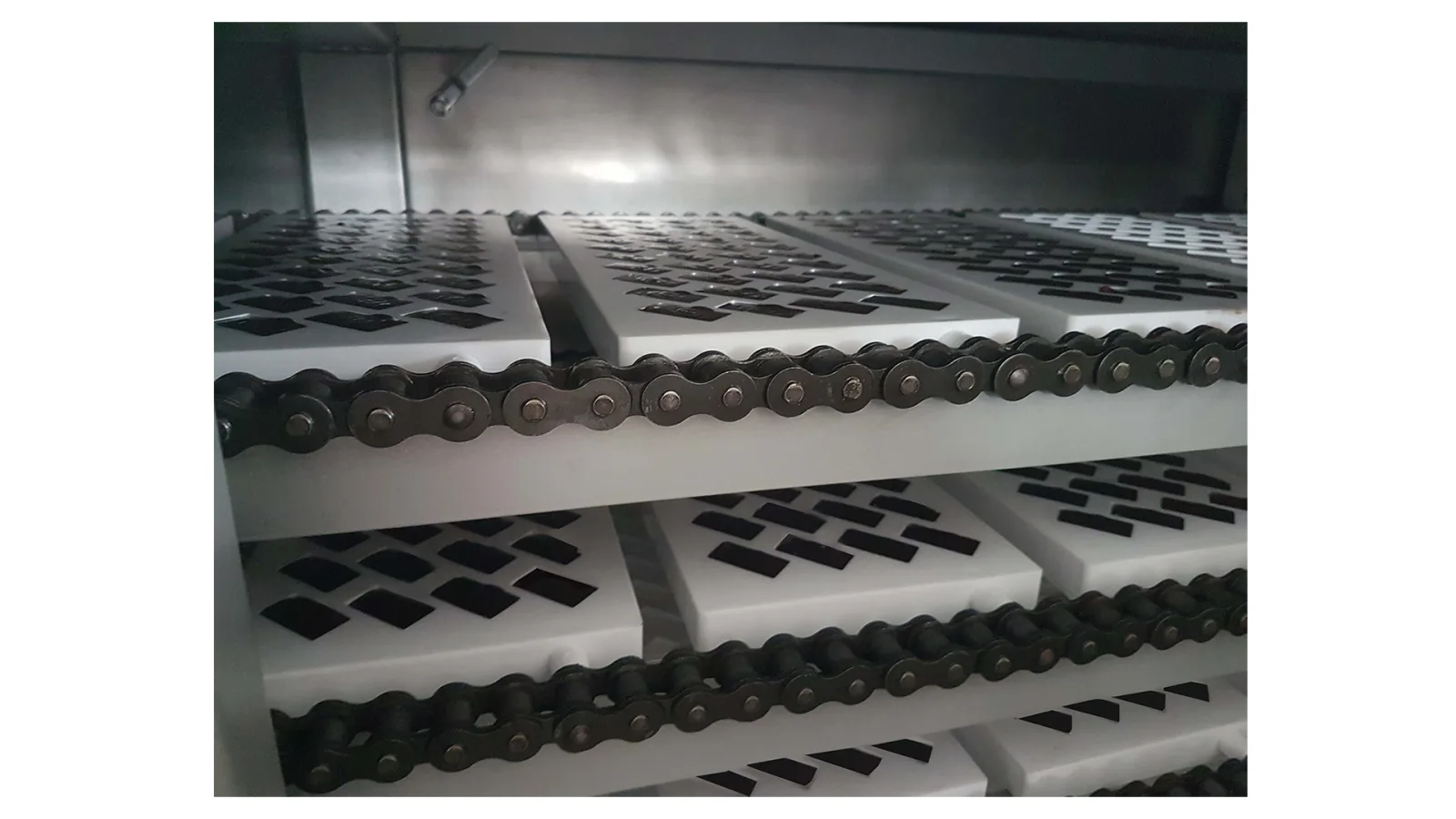

That is the PIN-DRIVE. Mould transport could not be more direct: pins on the chain engage slots in each mould, so the moulds travel with the chain — positive, mechanical, reliable advancement through every station, with no transfer mechanisms to drift out of adjustment. The layout is a compact straight line that uses floor space efficiently.
What you don’t give up is depositing quality. The PIN-DRIVE runs 6 servo motors and the same proprietary ALPY Cam Profile Depositing Program as our flagship lines, so one-shot deposit accuracy — the spec that controls product weight and give-away — is uncompromised.
- Capacity: 15–18 moulds per minute for one-shot products
- Mould dimensions: 470 x 200 x 30 mm or 600 x 200 x 30 mm
72 metres of cooling in a compact line
The cooling tunnel is built as 6 stacked flats of 12 metres each — 72 metres of total cooling length folded into a fraction of the floor space. Long, gentle cooling at line speed is what lets demoulded product come off the exit conveyor with clean release and stable gloss, without slowing the line to wait for it.
Standard stations
- Mould heating tunnel

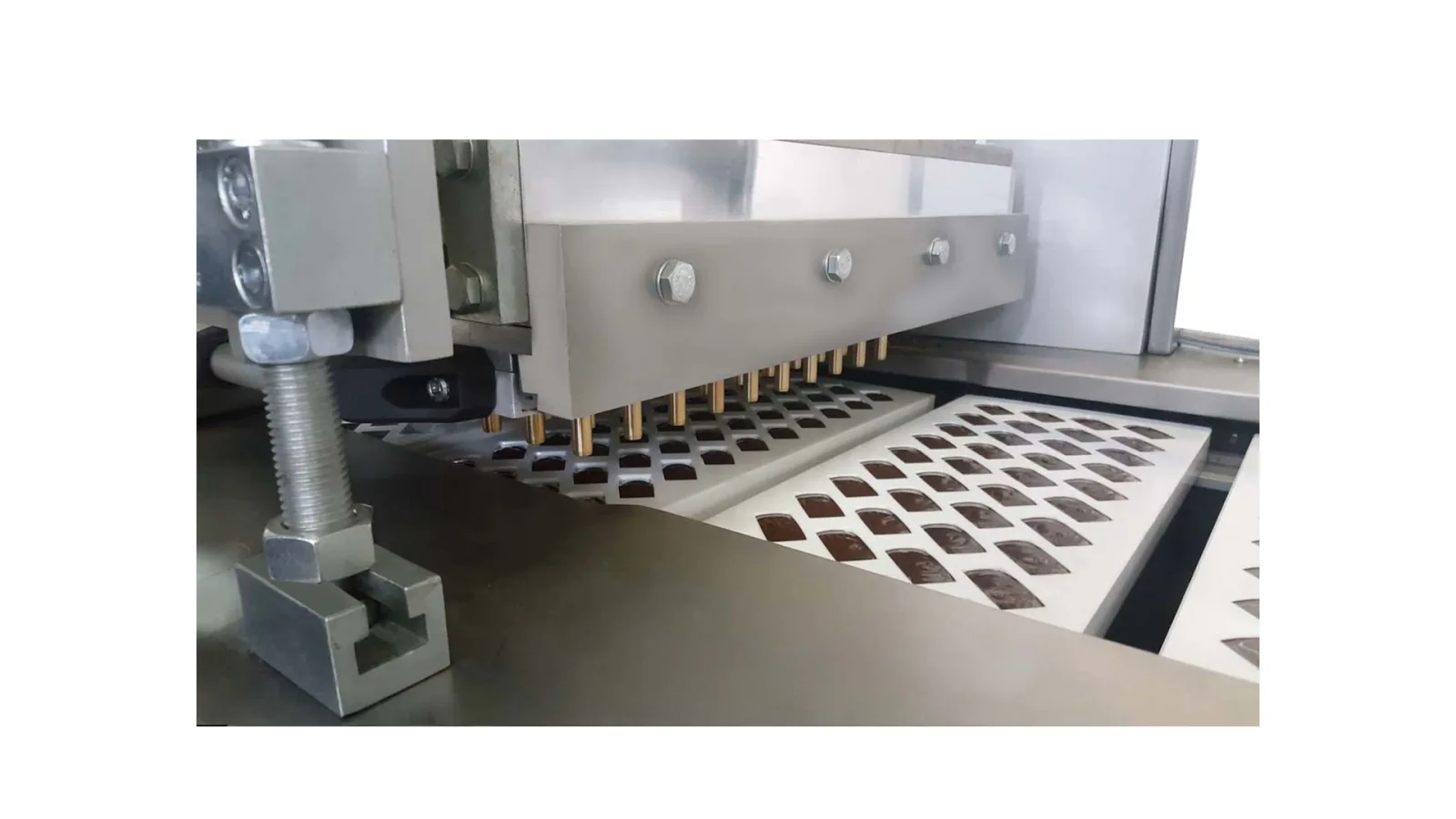

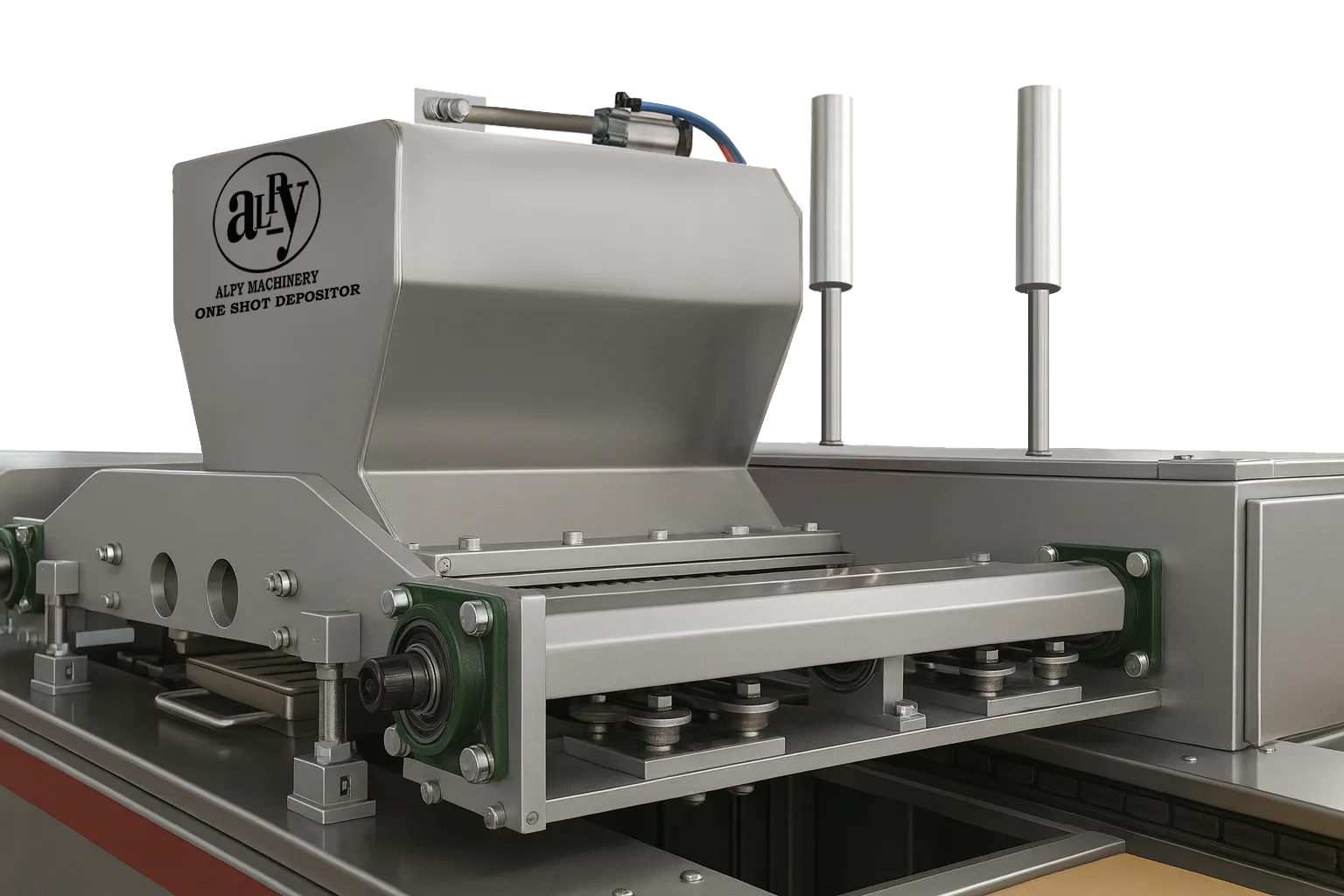

- One-shot depositor with vibration
- 6-flat cooling tunnel (6 x 12 m, 72 m total cooling length)
- Automatic mould unloading group
- Exit conveyor for demoulded products
Optional stations
- Second one-shot depositor (chocolate or filling)
- Granule and chocolate/cream mixer
- Biscuit feeding group
Is PIN-DRIVE the right line for you?
Choose the PIN-DRIVE for dedicated, stable production at the lowest sensible investment. If your product range changes often or you want to add station types over time, the modular MODUFLEX is built for that. For filled chocolates with deposited shells, you need the Shell Moulding Line. Not sure? Describe your products and volumes and we will tell you straight which line earns its cost.
