Sugar Mill
Powdered sugar on demand, milled to the micron range your recipe needs.
Specifications
| Model | Capacity | Note |
|---|---|---|
| Single-Head | 500 kg/h | 30–60 µm fineness |
| Single-Head | 1,000 kg/h | 50–100 µm fineness |
| Double-Head | 1,000 kg/h | 30–60 µm fineness |
| Double-Head | 2,000 kg/h | 50–100 µm fineness |
Buying pre-ground powdered sugar means paying someone else’s margin and accepting their particle size. Milling crystal sugar in-house puts both back under your control — provided the mill delivers consistent fineness and doesn’t fill your plant with sugar dust.

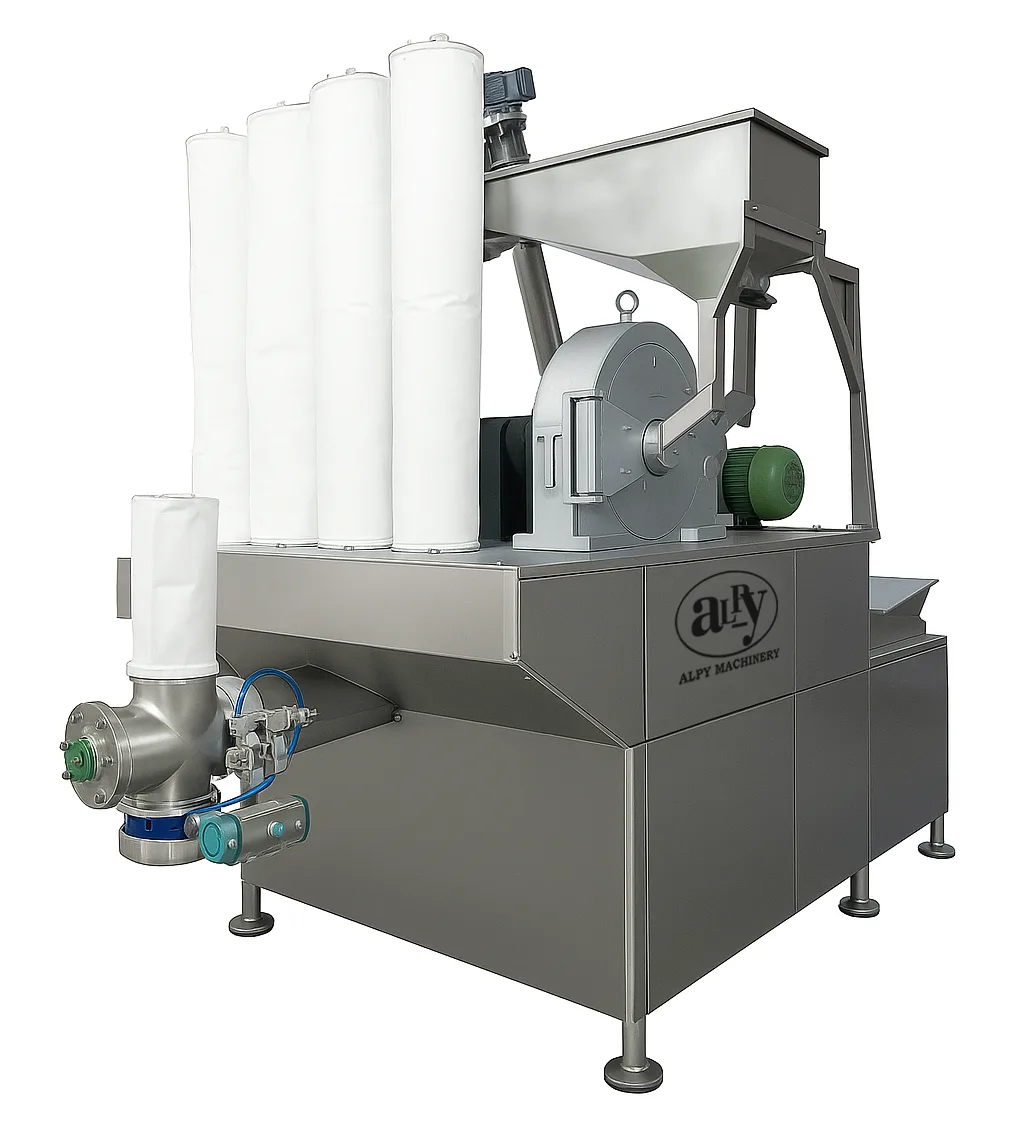

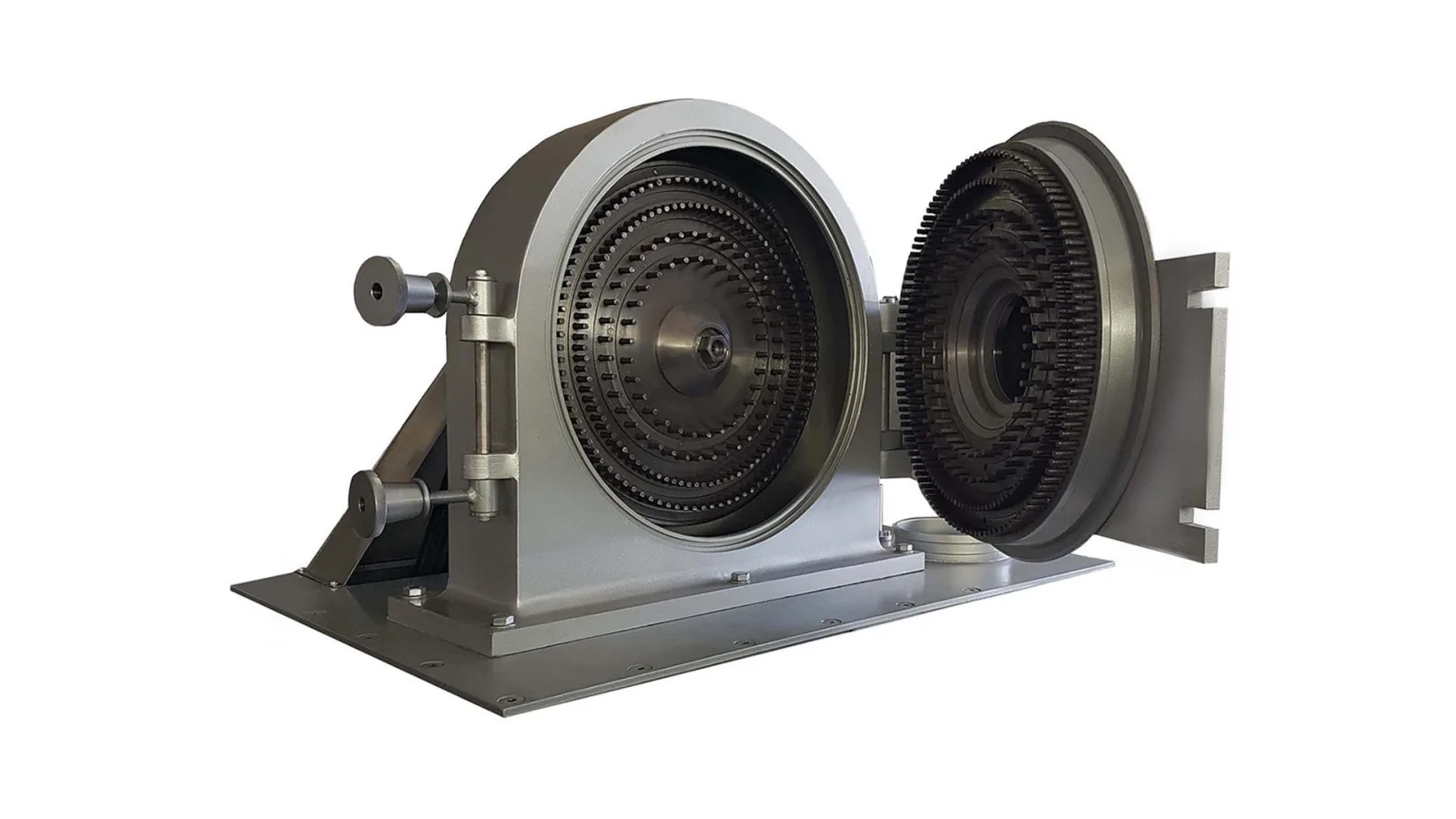

The Alpy Sugar Mill is built around a four-row pin configuration running at 5,600 RPM, reducing crystal sugar to powder in a single pass with adjustable fineness from 30 to 100 microns. The system is enclosed, with an integrated air filtration system that captures dust at source — a food-safety point and a housekeeping point, but above all an explosion-risk point that anyone milling sugar takes seriously.
Configurations and output

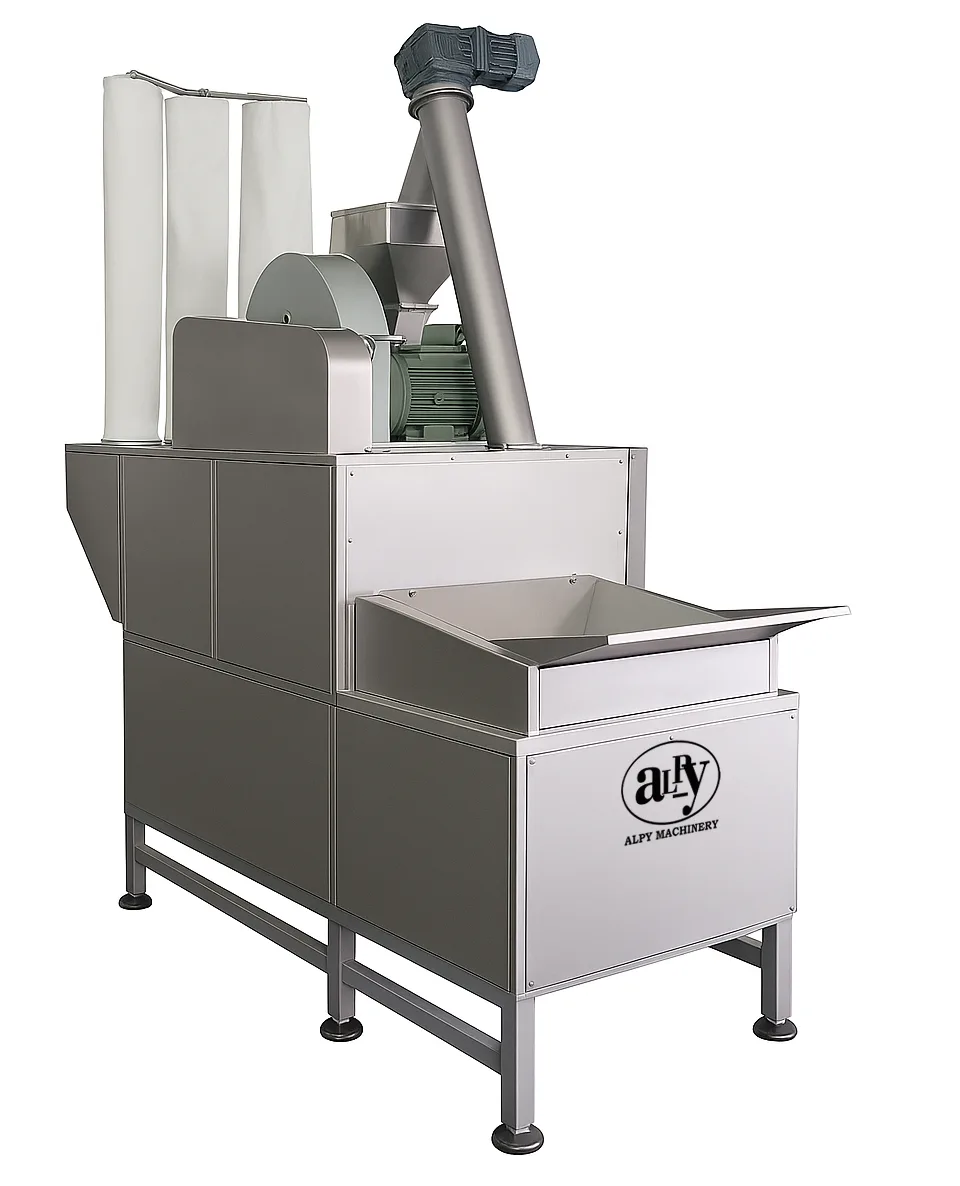

Single-head Sugar Mill:
| Output | Fineness range |
|---|---|
| 500 kg/h | 30–60 microns |
| 1,000 kg/h | 50–100 microns |

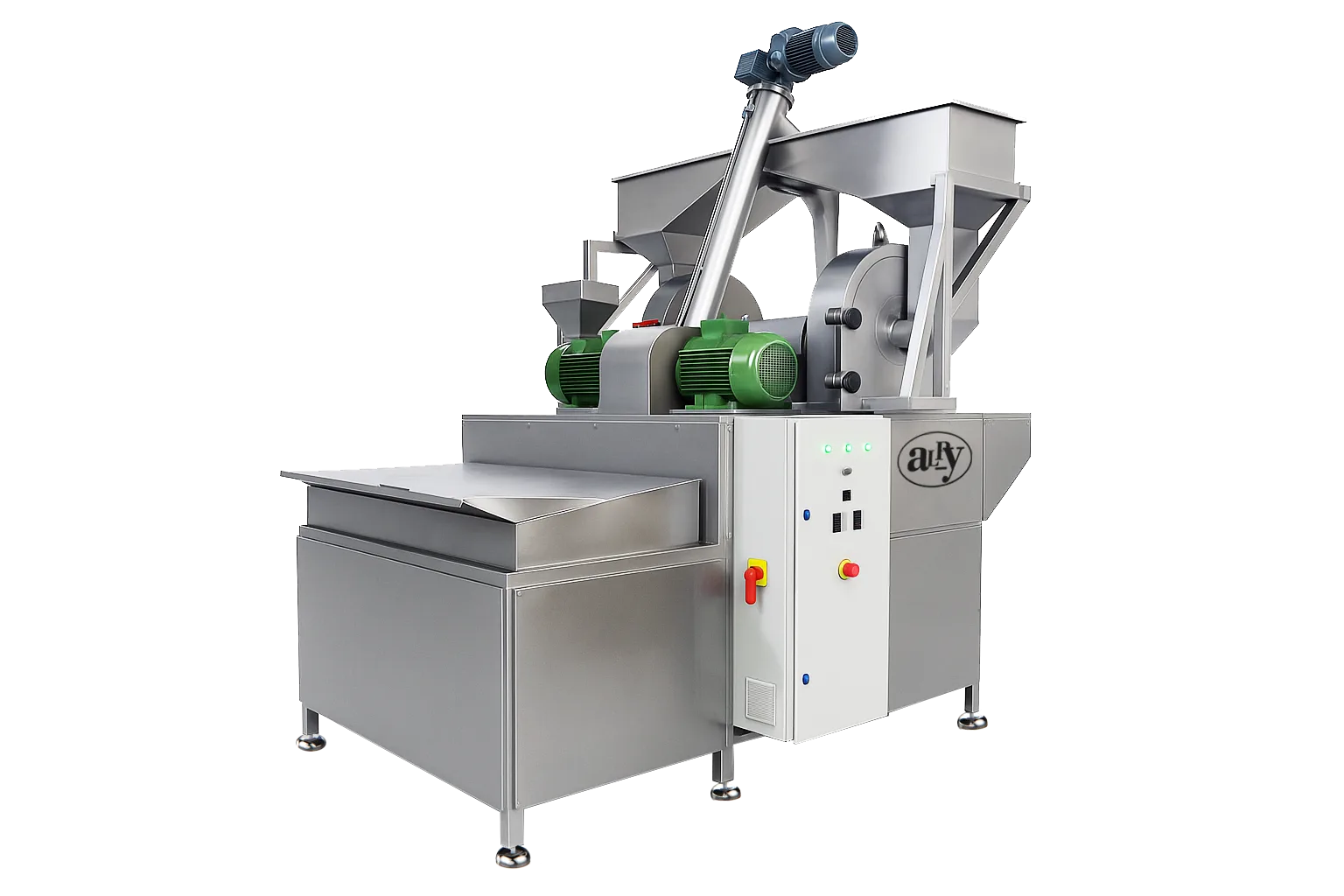

Double-head Sugar Mill: twice the capacity of the single-head model, within the same footprint. The right choice when your refining stage — for example a Chocoline 1000/P — consumes powdered sugar faster than a single head produces it.
In the Alpy line-up
The Sugar Mill typically feeds the Preparation Mixer, where milled sugar joins fats, cocoa liquor, and powders before refining. Specify both together and the capacities arrive matched.
Tell us your hourly sugar consumption and target fineness; we will recommend single or double head accordingly.
