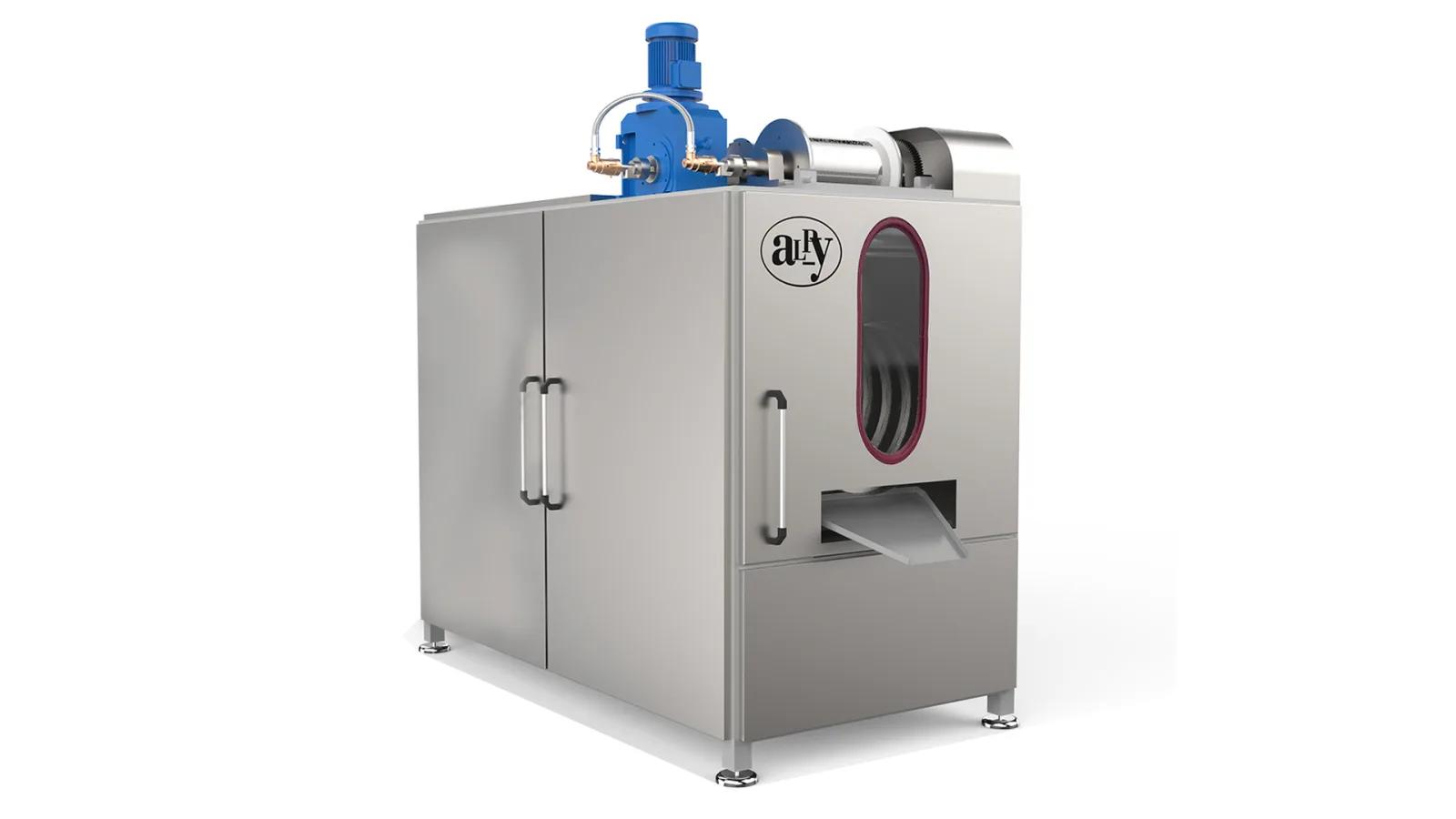

Dragee Forming Line
Dragees and formed chocolates from a line that fits where others won't.
Specifications
| Model | Capacity | Note |
|---|---|---|
| Model - 150 | 130–150 kg/h | 1 former set |
| Model - 300 | 260–300 kg/h | 2 former sets |
Specialty products like dragees and lentils are usually a second or third production line — which means they get whatever floor space is left over. The Alpy Chocolate Forming Line is designed for exactly that reality.

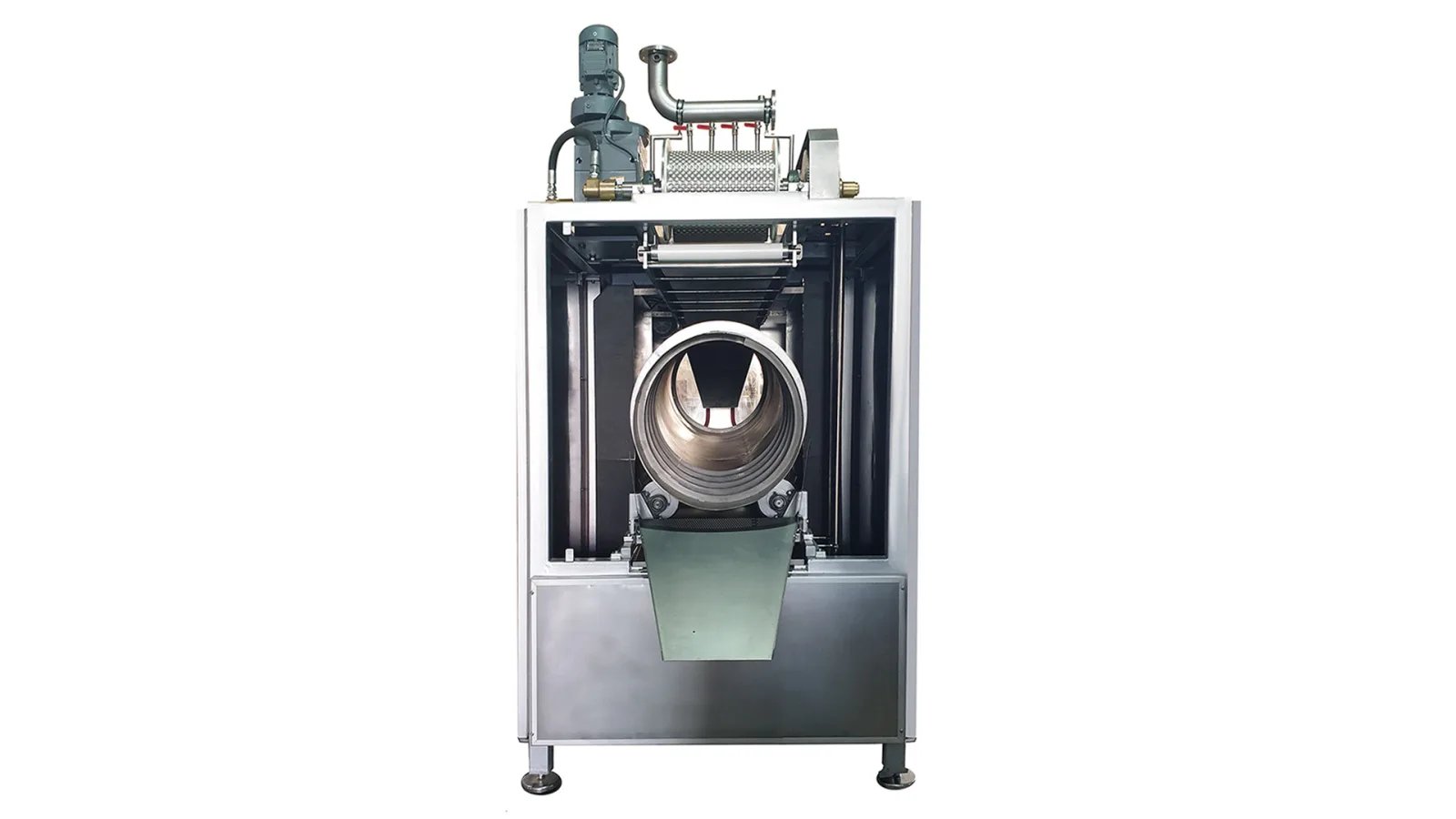

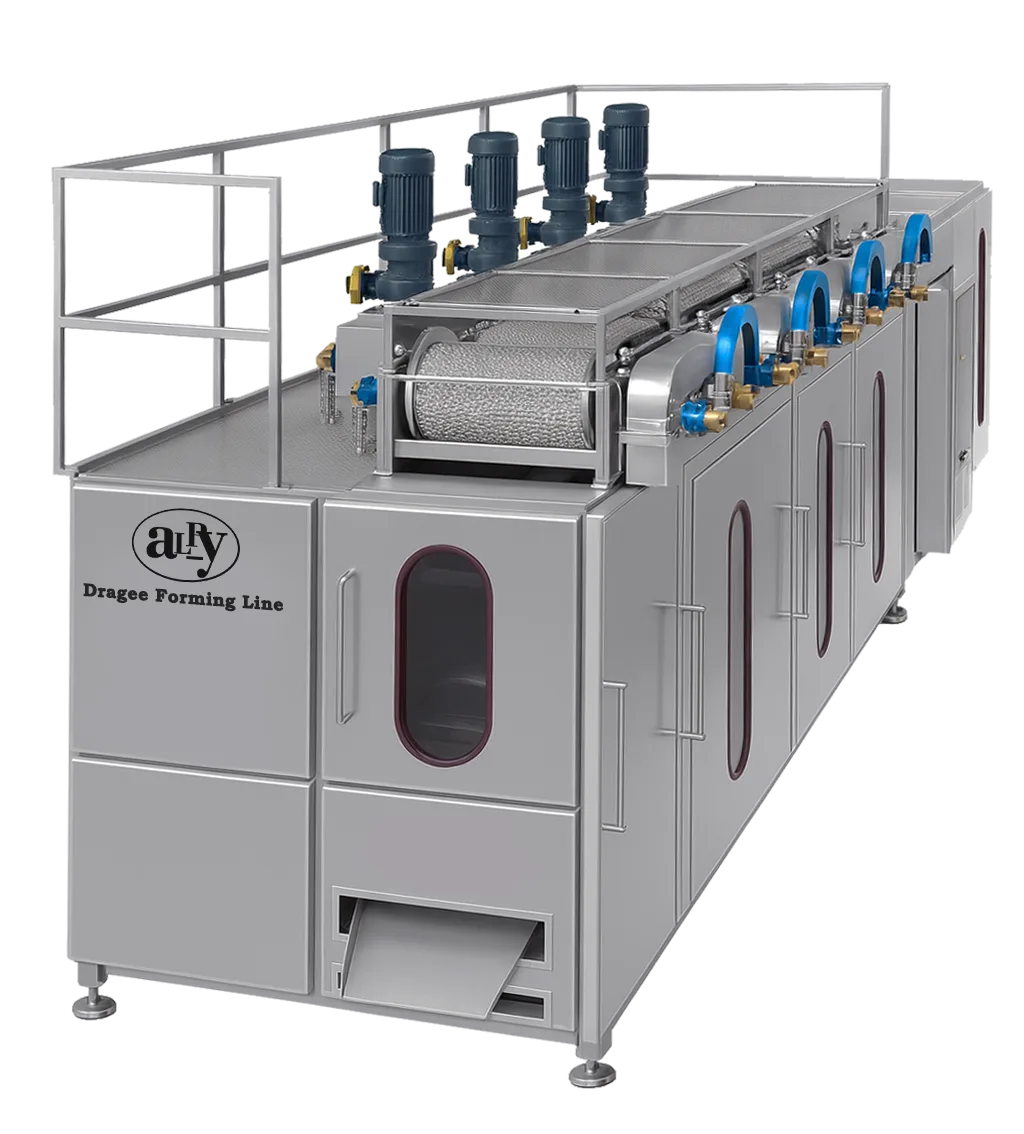

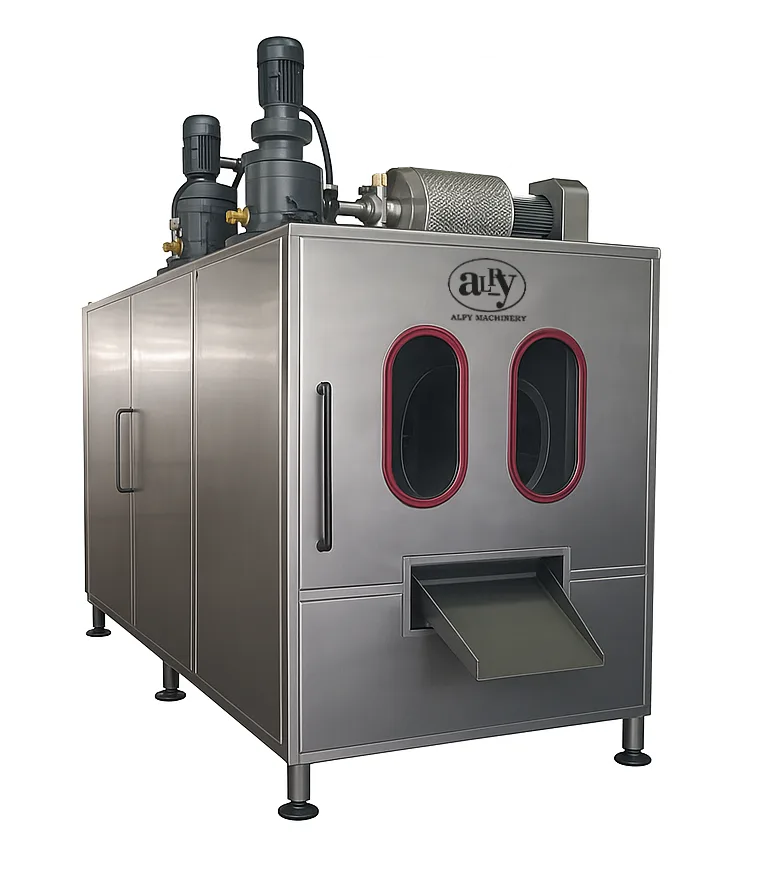

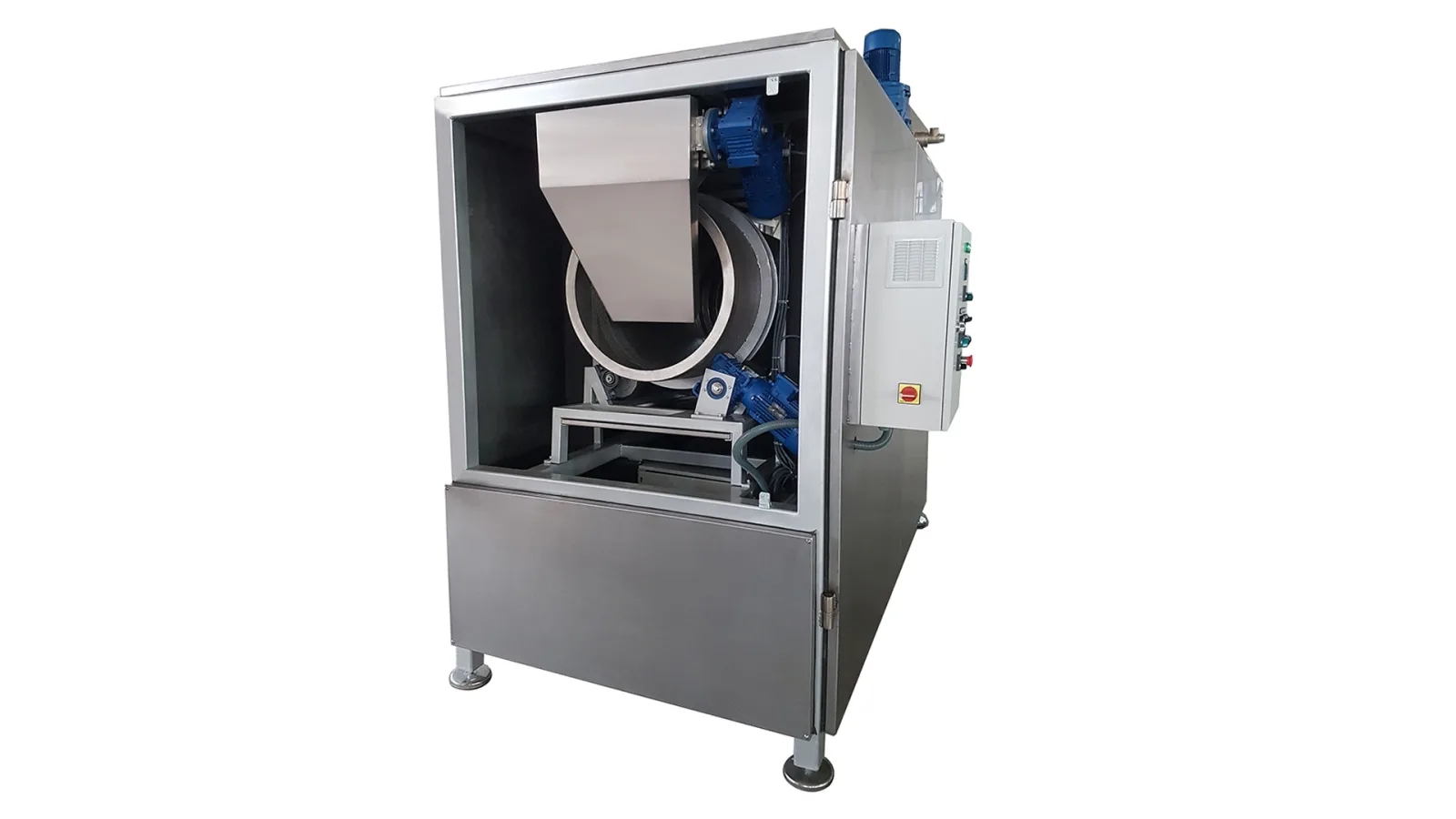

The line is built as a single, self-contained structure: forming drums, conveyor belt, and cleaning drum all housed together, with a built-in condenser group cooling the system from beneath the machine. No external chilled-water infrastructure, no separate cooling plant to budget, plumb, and maintain — the line arrives with its cooling included. The flat, low-profile layout keeps the footprint minimal and suits facilities where height and floor space are both spoken for.
Capacity that grows by module
| Configuration | Capacity |
|---|---|
| 1 former set | 130–150 kg/h |
| 2 former sets | 260–300 kg/h |
Standard forming width is 600 mm. Start with one former set; when the product line earns it, add a second set and double the output — you expand the line you own instead of replacing it. That makes the Forming Line a low-risk way to enter the dragee and shaped-chocolate category: modest initial investment, self-contained installation, and a defined upgrade path.
Where it fits in your plant
The Forming Line takes tempered chocolate — typically from an Alpy Tempering Machine — and runs independently of your moulding lines, so specialty production doesn’t compete with your core products for line time.
Tell us your target products and volumes and we will confirm former-set configuration and utilities.
